ADDA散熱風扇/AD0512MB-G70
地區城市：廣東省 －深圳市 更新時間：2013-7-15 22:40:49
聯 系 人： 李 有效期限：2014-7-9 11:45:49
公司名稱：深圳市旺景科技有限公司
電子信箱：sam@smartfan.com.cn 聯系電話：86-755-83286865

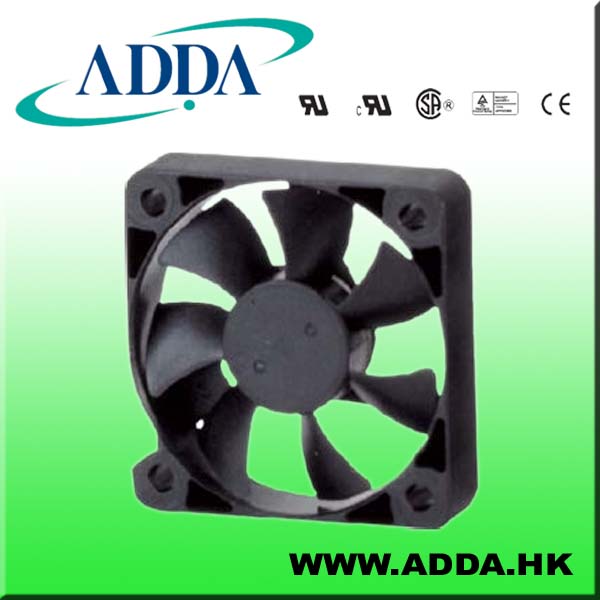

ADDA 50X50X10mm 5v/12v/24v dc fan AD5010
1. frame size(mm): 50X50X10
2. bearing type: hypro,sleeve,1B1S,ball bearing
3. rated voltage: 5V,12V,24V
ADDA 50X50X10mm 5v/12v/24v dc fan AD5010
|
Frame size(mm) |
50X50X10 | |
|
2 |
Bearing type |
hypro bearing,sleeve,1B1S,ball bearing |
|
3 |
Rated voltage |
5V,12V,24V |
|
4 |
Rated speed |
3700~5000RPM |
|
5 |
Max air flow |
11.2CFM |
|
6 |
maxiam pressure: |
3.25mmAq |
|
7 |
Maxiam noise |
26dBA |
|
8 |
Functions |
by impedance,by IC, FG, RD, PWM |
|
9 |
safety approvals |
CE,TUV,UL,cUL |
|
10 |
Electric Strength |
5mA msx at 1500VAC for 1 min between lead wire and frame |
|
11 |
Insulation Resistance |
10M ohm between lead wire and frame(DC 500V) |
|
12 |
Life Expectancy(Ball bearing) |
7000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
13 |
Life Expectancy(Hypro bearing) |
>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
14 |
Operation Temperature |
-10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F) |
|
15 |
Storage Temperature |
-40~75 degree C(-40~167 degree F) |
|
16 |
Protection |
Motor protection and polarity protection |
|
17 |
Lead wire |
UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 |
|
18 |
Plastic Material |
Black PBT (UL94V-0) glass fiber |
ADDA AD5010 dc fan
1. frame size(mm): 50X50X10
2. bearing type: hypro,sleeve,1B1S,ball bearing
3. rated voltage: 5V,12V,24V
ADDA AD5010 dc fan
|
1 |
Frame size(mm) |
50X50X10 |
|
2 |
Bearing type |
hypro bearing,sleeve,1B1S,ball bearing |
|
3 |
Rated voltage |
5V,12V,24V |
|
4 |
Rated speed |
3700~5000RPM |
|
5 |
Max air flow |
11.2CFM |
|
6 |
maxiam pressure: |
3.25mmAq |
|
7 |
Maxiam noise |
26dBA |
|
8 |
Functions |
by impedance,by IC, FG, RD, PWM |
|
9 |
safety approvals |
CE,TUV,UL,cUL |
|
10 |
Electric Strength |
5mA msx at 1500VAC for 1 min between lead wire and frame |
|
11 |
Insulation Resistance |
10M ohm between lead wire and frame(DC 500V) |
|
12 |
Life Expectancy(Ball bearing) |
7000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
13 |
Life Expectancy(Hypro bearing) |
>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
14 |
Operation Temperature |
-10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F) |
|
15 |
Storage Temperature |
-40~75 degree C(-40~167 degree F) |
|
16 |
Protection |
Motor protection and polarity protection |
|
17 |
Lead wire |
UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 |
|
18 |
Plastic Material |
Black PBT (UL94V-0) glass fiber |
