產品詳細信息
4.3 英寸 LCD 顯示屏入門套件，用于 Raspberry Pi (gen4-uLCD-43DCT-CLB-PI)
入門套件 SK-gen4-43DCT-CLB-PI 由 4 D Systems 推出，設計用于 Raspberry Pi (RS 896-8660)。 該套件具有 4.3” 顯示屏模塊和集成式 Diablo16 圖形控制器，還配有部分硬件。 Gen4 模塊具有電容式觸控顯示屏，可讓您探索 4D Workshop4 環境和訪問所有功能，以便為要求的應用提供幫助。

通過設計人員環境，您可使用顯示屏的所有功能。 微型 SD 卡用于顯示圖像、視頻和聲音。 可通過編程電纜或允許下載編譯代碼和 PmmC/固件更新的適配器實現數據記錄。 Visi 和 Visi-Genie 環境是相似環境，均基于圖像，需要使用微型 SD 卡及編程電纜。 串行環境一旦作配置為串行設備，便不再要求使用微型 SD 卡或編程電纜。 不過，可使用微型 SD 卡進行存儲，甚至可更改為其他程序環境之一。

gen4-uLCD-43DCT-PI 的 4 D Systems 入門套件可與 4D 編程電纜、uUSB-PA5-II 和 4D Arduino 適配器 Shield-II 配合使用。 其他附件的套件中提供 gen4-PA、gen4-IB 和 4D 串行 Pi 適配器。

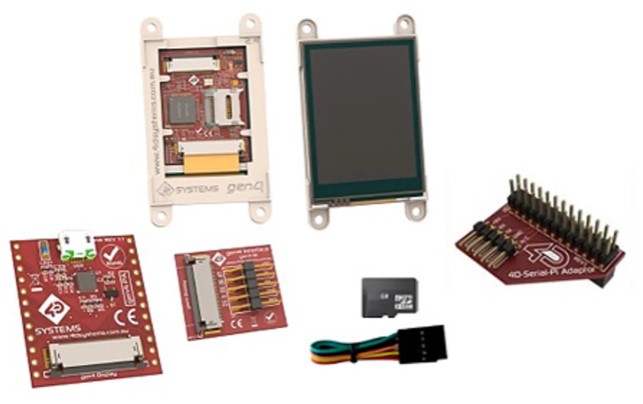

盒裝

Gen4 集成式顯示屏模塊：gen4-uLCD-32DCT 顯示屏，帶電容式觸控功能和目鏡座圈
4D 串行 Pi 適配器
Gen4 接口模塊：gen4-IB
Gen4 編程適配器：gen4-PA
4 GB 微型 SD 卡
150 mm FFC 電纜：5 路母到母帶狀電纜，帶公到公適配器
快速入門指南

功能列表
顯示屏尺寸：4.3”
控制器：Diablo16
顯示屏分辨率：480 x 272
顯示屏亮度：大約 450 尼特
背光 LED：2 x 5
觸控功能：電容式，帶目鏡座圈
連接器：30 路 FPC
顯示屏可視區 (mm)：95.04 x 53.86
模塊尺寸 (mm)：123.0 x 84.5 x 8.3
工作環境溫度：-15°C 至 +65°C
存儲溫度：-30°C 至 +70°C

4D Systems 第四代 LCD 顯示屏模塊
產品技術參數
屬性 數值
對角線顯示器尺寸 4.3in
顯示技術 電容式觸摸屏
套件分類 入門套件
套件名稱 Gen4 Diablo16
使用于 Raspberry Pi
