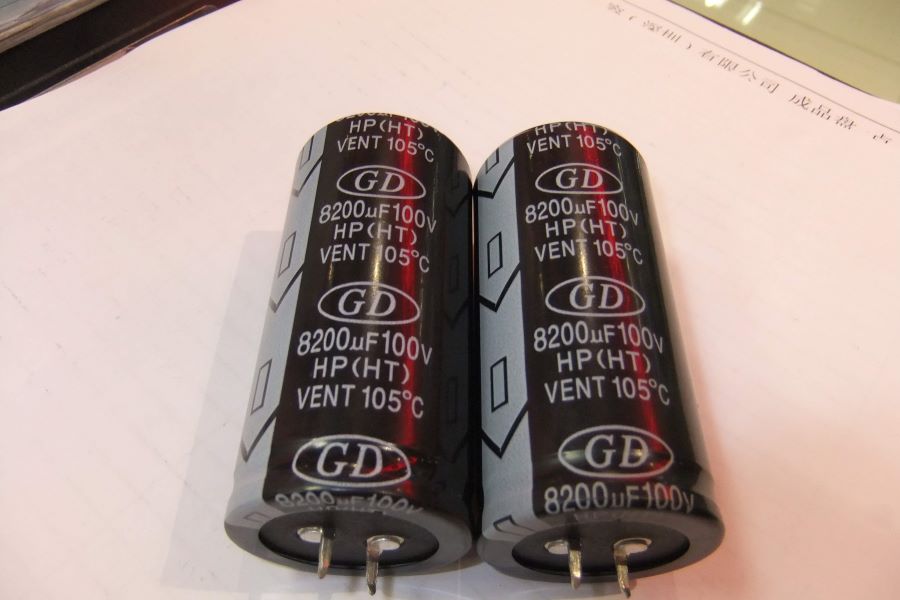

HP耐高溫焊針型
SNAP-IN TERMINAL TYPE， WIDE TEMPERRATURE RANGE SERIES
低中高壓，焊針式標準品，可用于大屏幕彩電、變頻空調、音響等電子線路中。
Low,medium and high voltage ,standard,
Use in big screen color-TV ,frequency conversion air conditioner audio circuits,ets.
Specifications
No. Item Performance
1 使用溫度范圍
Operating Temperature Range （WV≤400） -40℃ to +105℃ （WV=450）-25℃ to +105℃
2 定格電壓范圍
Rated Working Voltage Range 10-450V.DC
3 靜電容量范圍
Capacitance Tolerance 47－47000µF 47－470µF
4 靜電容量容許差
Capacitance Tolerance ±20% (at+25℃,120Hz)
5 泄漏電流
Leakage Current I≤0.03CV（µA） or 3mA（whichever is greater） after five minutes
6 損失角
Dissipation Factor(tanδ)
（120Hz\+25℃） Working Voltage （v） 10 16,25 35 50,63 80,100 160,350 400 450
                            tanδ max. 0.40 0.35 0.30 0.25 0.20 0.15 0.15 0.20
For capacitance value ＞1000µF, add 0.02 per another 1000µF
7 溫度特性（at 120 Hz）
Characteristics at low temperature （stability at 120Hz）
Working Voltage (V) 10~16 25 35 50,63 80,100 160,200 250~450
-25℃/+20℃ 4 3 3 2 2 2 2
-40/℃+20℃ 15 10 8 6 5 6 -

8 高溫負荷特性
High Temperature Loading After 2000 hrs. application of DC rated working voltage at +105℃,The capacitor shall meet the following limits: Post test requirements at + 25℃
Leakage current ≤ the Initial specified value
Capacitance change ≤±20% of initial measured value
Dissipation Factor(tanδ) ≤200% of initial specified value

9 高溫無負荷特性
Shelf Life
After storage for 1000hrs. at＋105℃ with no voltage applied.
Post test requirements at+25℃
Same limits for high temperature lading.
Diagram of Dimensions Unit (mm)
