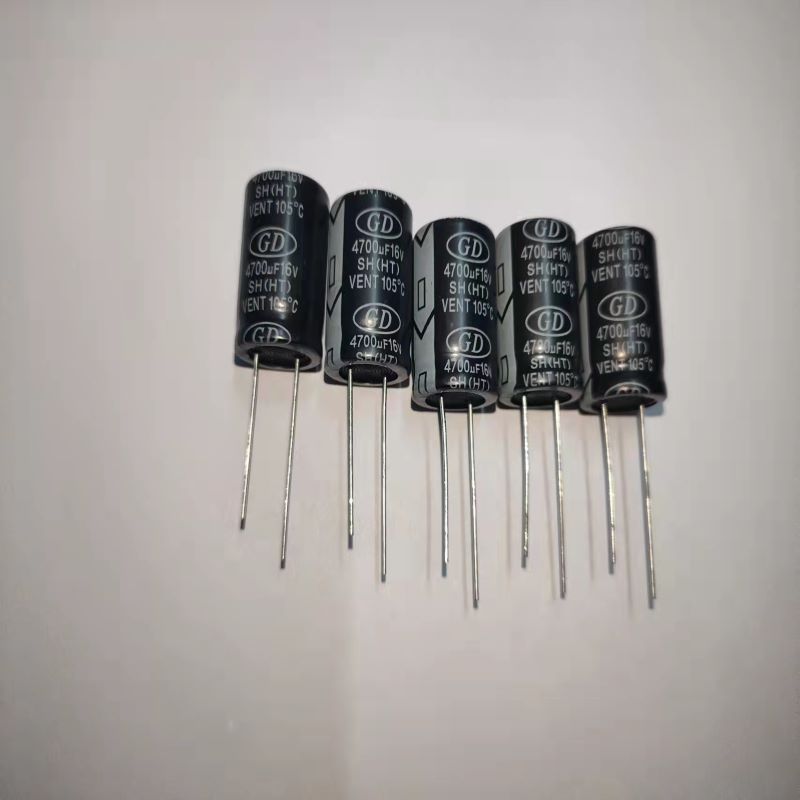

SH series general purpose 1050C 高溫度標準品
1. 寬溫度產(chǎn)品，1050C，2000小時壽命，體積小，容量大
Wide temperature range,1050C,Load life:1000hours,small size,
large capacity
2. 適用于VCD、DVD、背投彩電、空調(diào)等線路中
Used in VCD、DVD、color-TV、air conditioning circuits etc.
Specifications
No Item Performance
1 使用溫度范圍
Operating Temperature Range -40 to + 1050C -25 to +1050C
2 定格電壓范圍
Rated Working Voltage Range 6.3－63V.DC 100－450V.DC
3 靜電容量范圍
Capacitance Tolerance 0.1－15000µF 0.47－1000µF
4 靜電容量容許差
Capacitance Tolerance ±20%(at+250C,120HZ)
5 泄漏電流
Leakage Current I≤0.01V or 3（µA）max I≤0.03CV or 20（µA）max
L: Leakage Current （µA）
Whichever is greater after 3 minutes. C: Rated Capacitance （µF）
V: Working Voltage （V）
6 損失角
Dissipation Factor(tanδ)
（120Hz\+25℃）
Working Voltage 6.3 10 16 25 35 50，63 100 160~250 350~450
tanδ max. 0.22 0.20 0.17 0.15 0.12 0.10 0.07 0.20 0.24
For capacitance value ＞1000µF, add 0.02 per another 1000µF
7 溫度特性（at 120 Hz）
Characteristics at low temperature （stability at 120HZ）
Working Voltage (V) 6.3 10 16 25~100 160~250 350 400 450
-25℃/+20℃ 4 3 2 2 3 6 6 15
-40/℃+20℃ 8 6 4 3
For capacitance value >1000µF,Add 0.5 per another 1000µF for -25℃/+25℃.
Add 1.0r another 1000µF for -40℃/+20℃
8 高溫負荷特性
High Temperature Loading After 2000hrs. application of DC rated working voltage at +105℃.
The capacitor shall meet the following limits:
Post test requirements at + 25℃
Leakage current ≤ the Initial specified value
Capacitance change ≤±20% of initial measured value
Dissipation Factor(tanδ) ≤200% of initial specified value

9 高溫無負荷特性
Shelf Life After storage for 1000hrs. at+105℃ with no voltage applied.
Post test requirements at+25℃
Same limits for high temperature lading.
