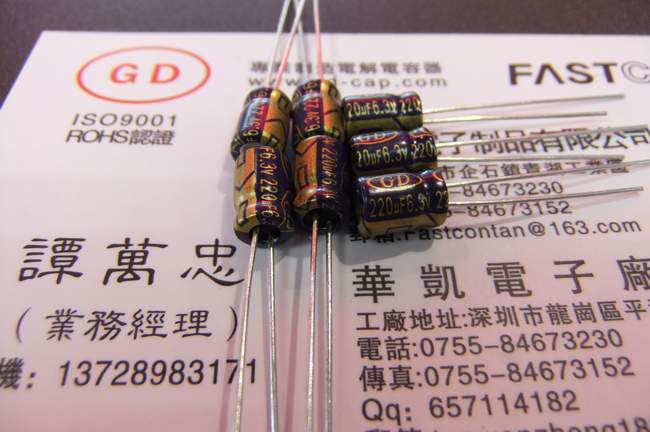

LOWESR高頻低阻抗電解電容器LEH(HT)220UF6.3V 5X7
所屬類別：電源配套分類>>電解電容
電子信箱：GD_huakai_tan@163.com
聯(lián)系電話：0755-84673230
聯(lián) 系 人：譚萬忠
更新時間：2013-11-24 15:42:20
LEH series 小型化高頻率低E.S.R品
Miniature size LOW E.S.R
1. 高頻率低ESR，壽命2000小時，1050C
Low ESR for high frequency , Life time:2000 hours at 1050C
2. 適用于電腦主機板，高保真音箱，高分辨數(shù)碼彩電等電子線路中
Used in main board , hi-fi acoustics ,numeral color-TV circuits etc
Specifications
|
No. |
Item |
Performance | ||||||||||||||||||||||||||||||
|
1 |
使用溫度范圍 Operating Temperature Range |
-40 to +1050C | ||||||||||||||||||||||||||||||
|
2 |
定格電壓范圍 Rated Working Voltage Range |
6.3-100V.DC | ||||||||||||||||||||||||||||||
|
3 |
靜電容量范圍 Capacitance Tolerance |
0.47-4700µF | ||||||||||||||||||||||||||||||
|
4 |
靜電容量容許差 Capacitance Tolerance |
±20%(at+25 0C,120Hz) | ||||||||||||||||||||||||||||||
|
5 |
泄漏電流 Leakage Current |
I ≤0.01CV or 2(µA) after three minutes Application of rated working voltage +25℃ | ||||||||||||||||||||||||||||||
|
6 |
損失角 Dissipation Factor(tanδ) （120Hz\+25℃） |
For capacitance value>1000µF,add 0.02 per another 1000µF | ||||||||||||||||||||||||||||||
|
7 |
溫度特性（at 120 Hz） Characteristics at low temperature (stability at 120Hz) |
| ||||||||||||||||||||||||||||||
|
8 |
高溫負荷特性 High Temperature Loading |
After 2000hrs. application of DC rated working voltage at +105℃,The capacitor shall meet the following limits: Post test requirements at + 25℃
| ||||||||||||||||||||||||||||||
|
9 |
高溫無負荷特性 Shelf Life |
After storage for 1000hrs. at+105℃ with no voltage applied. Post test requirements at+25℃ Same limits for high temperature lading. |
