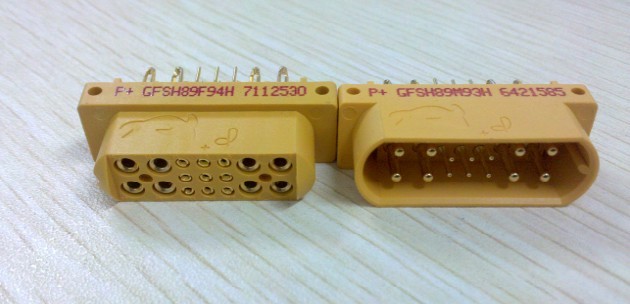

GOLDFISH系列連接器
地區城市：北京市－北京 更新時間：2010-12-29 10:41:13
聯 系 人：薛玉軍 有效期限：2011-12-29 10:41:13
公司名稱：北京頤和興業科技有限公司
電子信箱：xueyujun@yhconnector.net 聯系電話：010-82669722-801
美商寶西金魚系列產品資料
技術特性
材料和表面處理:
絕緣體: 玻璃纖維填充尼龍 阻燃等級: VL 94V-0 顏色: 黃色
接觸件: 精密機械加工銅合金鎳上鍍金,或者根據要求用精密沖壓成型銅合金鎳上鍍金,或者鎳上鍍錫
電性能
接觸件電流額定值:( 按照UL 1977標準)
12號接觸件: 35安培持續供電(標準材料型)
50安培持續供電(高傳導性材料型)
16號接觸件: 20安培持續供電(標準材料型)
30安培持續供電(高傳導性材料型)
20號接觸件: 5安培 標稱值(標準材料型)
22號接觸件: 3安培 標稱值(標準材料型)
1安培 標稱值(精密結構型)
初始接觸電阻(最大)按照IEC 512-2標準,測試方法2b:
12號接觸件: 0.001歐姆(標準材料型)
0.0004歐姆(高傳導性材料型)
16號接觸件: 0.0016歐姆(標準材料型)
0.0007歐姆(高傳導性材料型)
20/22號接觸件: 0.005歐姆(標準材料型)
22號接觸件: 0.009歐姆(精密結構型)
絕緣電阻: (按照IEC512-2標準,測試方法:3a): 5000兆歐
擊穿電壓
動力接觸件: 1500伏 有效值
1300伏 有效值(適用于GFSH89和GFSH624系列)
信號接觸件: 1000伏 有效值
工作電壓
動力接觸件: 500伏 有效值
150伏 有效值(適用于GFSH89和GFSH624系列)
信號接觸件: 333伏 有效值
熱插拔性(50聯 按照UL1977 第15節)
12號接觸件: 250伏25安培
16號接觸件: 請聯系工廠
機械性能
盲插系統: 模具允許未對準范圍為2毫米(0.079英寸)
鍵位: 由絕緣體提供
可卸出接觸件: 從絕緣體后部安裝,取出則用取針工具從絕緣體前部插入,插孔的特點為閉口式,1000次插拔設計
固定接觸件: 12號和16號接觸件采用閉口式設計,1000次插拔(包括直式或直角(90°)線路板安裝型)
22號機械加工接觸件和沖壓成型接觸件采用開口式設計,250插拔(包括直式或直角(90°)線路板安裝型)
接觸件在絕緣體力的保持力: 動力接觸件 45牛 (10磅)最小值
信號接觸件 27牛 (6磅)最小值
持續插拔: 適用于2和3級系統,請向工廠定制
環境特性
工作溫度: -55℃- +105℃
通過的認證:
UL認證: UL文件號E49351 適用于金魚全系列產品,包括GFSH928壓接型產品
TUV認證: 文件號 006089
對于TUV,首先插配的接觸件不是設計用來用于保護接地的端子,請向工廠索要更新信息
金魚系列產品型號:
|
|
GFSH928系列 | ||||
|
GFSH02F1H |
GFSH89F1H |
GFSH109F1H |
GFSH435F1H |
GFSH624F1H |
GFSH928F1H |
|
GFSH02F182 |
GFSH89F182 |
GFSH109F182 |
GFSH435F182 |
GFSH624F182 |
GFSH928F182 |
|
GFSH02F183 |
GFSH89F183 |
GFSH109F183 |
GFSH435F183 |
GFSH624F183 |
GFSH928F183 |
|
GFSH02F1E |
GFSH89F1E |
GFSH109F1E |
GFSH435F1E |
GFSH624F1E |
GFSH928F1E |
|
GFSH02F1T |
GFSH89F1T |
GFSH109F1T |
GFSH435F1T |
GFSH624F1T |
GFSH928F1T |
|
GFSH02F1W |
GFSH89F1W |
GFSH109F1W |
GFSH435F1W |
GFSH624F1W |
GFSH928F1W |
|
GFSH02F1WE |
GFSH89F1WE |
GFSH109F1WE |
GFSH435F1WE |
GFSH624F1WE |
GFSH928F1WE |
|
GFSH02M1H |
GFSH89M1H |
GFSH109M1H |
GFSH435M1H |
GFSH624M1H |
GFSH928M1H |
|
GFSH02M182 |
GFSH89M182 |
GFSH109M182 |
GFSH435M182 |
GFSH624M182 |
GFSH928M182 |
|
GFSH02M183 |
GFSH89M183 |
GFSH109M183 |
GFSH435M183 |
GFSH624M183 |
GFSH928M183 |
|
GFSH02M1E |
GFSH89M1E |
GFSH109M1E |
GFSH435M1E |
GFSH624M1E |
GFSH928M1E |
|
GFSH02M1T |
GFSH89M1T |
GFSH109M1T |
GFSH435M1T |
GFSH624M1T |
GFSH928M1T |
|
GFSH02M1W |
GFSH89M1W |
GFSH109M1W |
GFSH435M1W |
GFSH624M1W |
GFSH928M1W |
|
GFSH02M1WE |
GFSH89M1WE |
GFSH109M1WE |
GFSH435M1WE |
GFSH624M1WE |
GFSH928M1WE |
|
GFSH02F3N |
GFSH89F3N |
GFSH109F3N |
GFSH435F3N |
GFSH624F3N |
GFSH928F3N |
|
GFSH02M3N |
GFSH89M3N |
GFSH109M3N |
GFSH435M3N |
GFSH624M3N |
GFSH928M3N |
|
GFSH02F3E |
GFSH89F3E |
GFSH109F3E |
GFSH435F3E |
GFSH624F3E |
GFSH928F3E |
|
GFSH02M3E |
GFSH89M3E |
GFSH109M3E |
GFSH435M3E |
GFSH624M3E |
GFSH928M3E |
|
GFSH02F3T |
GFSH89F3T |
GFSH109F3T |
GFSH435F3T |
GFSH624F3T |
GFSH928F3T |
|
GFSH02M3T |
GFSH89M3T |
GFSH109M3T |
GFSH435M3T |
GFSH624M3T |
GFSH928M3T |
|
GFSH02F4B |
GFSH89F4B |
GFSH109F4B |
GFSH435F4B |
GFSH624F4B |
GFSH928F4B |
|
GFSH02F4LN |
GFSH89F4LN |
GFSH109F4LN |
GFSH435F4LN |
GFSH624F4LN |
GFSH928F4LN |
|
GFSH02F4TB |
GFSH89F4TB |
GFSH109F4TB |
GFSH435F4TB |
GFSH624F4TB |
GFSH928F4TB |
|
GFSH02F4TLN |
GFSH89F4TLN |
GFSH109F4TLN |
GFSH435F4TLN |
GFSH624F4TLN |
GFSH928F4TLN |
|
GFSH02M4B |
GFSH89M4B |
GFSH109M4B |
GFSH435M4B |
GFSH624M4B |
GFSH928M4B |
|
GFSH02M4LN |
GFSH89M4LN |
GFSH109M4LN |
GFSH435M4LN |
GFSH624M4LN |
GFSH928M4LN |
|
GFSH02M4TB |
GFSH89M4TB |
GFSH109M4TB |
GFSH435M4TB |
GFSH624M4TB |
GFSH928M4TB |
|
GFSH02M4TLN |
GFSH89M4TLN |
GFSH109M4TLN |
GFSH435M4TLN |
GFSH624M4TLN |
GFSH928M4TLN |
|
GFSH02F37N |
GFSH89F37N |
GFSH109F37N |
GFSH435F37N |
GFSH624F37N |
GFSH928F37N |
|
GFSH02M37N |
GFSH89M37N |
GFSH109M37N |
GFSH435M37N |
GFSH624M37N |
GFSH928M37N |
|
GFSH02F37E |
GFSH89F37E |
GFSH109F37E |
GFSH435F37E |
GFSH624F37E |
GFSH928F37E |
|
GFSH02M37E |
GFSH89M37E |
GFSH109M37E |
GFSH435M37E |
GFSH624M37E |
GFSH928M37E |
|
GFSH02F37T |
GFSH89F37T |
GFSH109F37T |
GFSH435F37T |
GFSH624F37T |
GFSH928F37T |
|
GFSH02M37T |
GFSH89M37T |
GFSH109M37T |
GFSH435M37T |
GFSH624M37T |
GFSH928M37T |
|
GFSH435F38N |
GFSH89F47B |
GFSH109F47B |
GFSH435F47B |
GFSH624F47B |
GFSH928F47B |
|
GFSH435M38N |
GFSH89F47LN |
GFSH109F47LN |
GFSH435F47LN |
GFSH624F47LN |
GFSH928F47LN |
|
GFSH435F38E |
GFSH89F47TB |
GFSH109F47TB |
GFSH435F47TB |
GFSH624F47TB |
GFSH928F47TB |
|
GFSH435M38E |
GFSH89F47TLN |
GFSH109F47TLN |
GFSH435F47TLN |
GFSH624F47TLN |
GFSH928F47TLN |
|
GFSH435F38T |
GFSH89M47B |
GFSH109M47B |
GFSH435M47B |
GFSH624M47B |
GFSH928M47B |
|
GFSH435M38T |
GFSH89MF47LN |
GFSH109MF47LN |
GFSH435MF47LN |
GFSH624MF47LN |
GFSH928MF47LN |
|
GFSH02F47B |
GFSH89M47TB |
GFSH109M47TB |
GFSH435M47TB |
GFSH624M47TB |
GFSH928M47TB |
|
GFSH02F47LN |
GFSH89M47TLN |
GFSH109M47TLN |
GFSH435M47TLN |
GFSH624M47TLN |
GFSH928M47TLN |
|
GFSH02F47TB |
GFSH89F93N |
GFSH109F93N |
GFSH435F93N |
GFSH624F93N |
GFSH928F93N |
|
GFSH02F47TLN |
GFSH89M93N |
GFSH109M93N |
GFSH435M93N |
GFSH624M93N |
GFSH928M93N |
|
GFSH02M47B |
GFSH89F93E |
GFSH109F93E |
GFSH435F93E |
GFSH624F93E |
GFSH928F93E |
|
GFSH02MF47LN |
GFSH89M93E |
GFSH109M93E |
GFSH435M93E |
GFSH624M93E |
GFSH928M93E |
|
GFSH02M47TB |
GFSH89F93T |
GFSH109F93T |
GFSH435F93T |
GFSH624F93T |
GFSH928F93T |
|
GFSH02M47TLN |
GFSH89M93T |
GFSH109M93T |
GFSH435M93T |
GFSH624M93T |
GFSH928M93T |
|
GFSH435F48B |
GFSH89F94N |
GFSH109F94N |
GFSH435F94N |
GFSH624F94N |
GFSH928F94N |
|
GFSH435F48LN |
GFSH89M94N |
GFSH109M94N |
GFSH435M94N |
GFSH624M94N |
GFSH928M94N |
|
GFSH435F48TB |
GFSH89F94E |
GFSH109F94E |
GFSH435F94E |
GFSH624F94E |
GFSH928F94E |
|
GFSH435F48TLN |
GFSH89M94E |
GFSH109M94E |
GFSH435M94E |
GFSH624M94E |
GFSH928M94E |
|
GFSH435M48B |
GFSH89F94T |
GFSH109F94T |
GFSH435F94T |
GFSH624F94T |
GFSH928F94T |
|
GFSH435MF48LN |
GFSH89M94T |
GFSH109M94T |
GFSH435M94T |
GFSH624M94T |
GFSH928M94T |
|
GFSH435M48TB |
GFSH89F93H |
GFSH109F93H |
GFSH435F93H |
GFSH624F93H |
GFSH928F93H |
|
GFSH435M48TLN |
GFSH89M93H |
GFSH109M93H |
GFSH435M93H |
GFSH624M93H |
GFSH928M93H |
|
GFSH435F48N |
GFSH89F94H |
GFSH109F94H |
GFSH435F94H |
GFSH624F94H |
GFSH928F94H |
|
GFSH435M48N |
GFSH89M94H |
GFSH109M94H |
GFSH435M94H |
GFSH624M94H |
GFSH928M94H |
|
GFSH435F48E |
GFSH89F3H |
GFSH109F3H |
GFSH435F3H |
GFSH624F3H |
GFSH928F3H |
|
GFSH435M48E |
GFSH89M3H |
GFSH109M3H |
GFSH435M3H |
GFSH624M3H |
GFSH928M3H |
|
GFSH435F48T |
GFSH89F4H |
GFSH109F4H |
GFSH435F4H |
GFSH624F4H |
GFSH928F4H |
|
GFSH435M48T |
GFSH89M4H |
GFSH109M4H |
GFSH435M4H |
GFSH624M4H |
GFSH928M4H |
|
GFSH02F93N |
|
|
|
|
|
|
GFSH02M93N |
|
|
|
|
|
|
GFSH02F93E |
|
|
|
|
|
|
GFSH02M93E |
|
|
|
|
|
|
GFSH02F93T |
|
|
|
|
|
|
GFSH02M93T |
|
|
|
|
|
|
GFSH02F94N |
|
|
|
|
|
|
GFSH02M94N |
|
|
|
|
|
|
GFSH02F94E |
|
|
|
|
|
|
GFSH02M94E |
|
|
|
|
|
|
GFSH02F94T |
|
|
|
|
|
|
GFSH02M94T |
|
|
|
|
|
|
GFSH02F93H |
|
|
|
|
|
|
GFSH02M93H |
|
|
|
|
|
|
GFSH02F94H |
|
|
|
|
|
|
GFSH02M94H |
|
|
|
|
|
|
GFSH02F3H |
|
|
|
|
|
|
GFSH02M3H |
|
|
|
|
|
|
GFSH02F4H |
|
|
|
|
|
|
GFSH02M4H |
|
|
|
|
|
