信息類型：跳蚤市場 　　 所屬類別：焊接電源
地區城市：廣東省 －東莞 更新時間：2012-2-29 16:10:27
聯 系 人： 熊斌 有效期限：2013-2-28 12:50:02

電子信箱：jingyuan_weld@163.com 　　 聯系電話：86-769-23117296

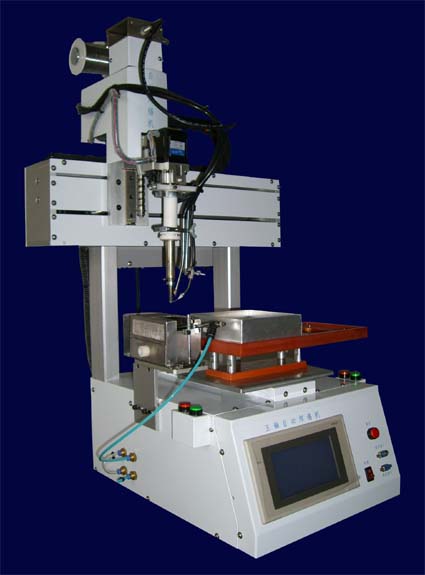

1.自動焊錫機器人可對各種工件進行高速拖焊，點焊，斜線焊接；
2.自動焊錫機器人有陣列復制，參數復制功能；
3.自動焊錫機器人可在程式中間插入清洗步驟，并可設定跳過，下壓等步驟；
4.自動焊錫機器人獨有的Model實名PN#存儲和設定功能；
5.自動焊錫機器人密碼保護功能，保護系統參數不被隨意更改；
6.自動焊錫機器人機器之間通訊，程式拷貝功能，大量節省手動做程式的時間；
7.自動焊錫機器人程式單個校正，整體校正功能，可對原點及工件偏移快速校正；
8.自動焊錫機器人單步，及AB自動定位功能，極大地方便程式的制作，確認及假焊修復等；
9自動焊錫機器人能存貯多達23個Model，每個Model可制作45步程式！使用時可隨意調用。
10.自動焊錫機器人具備插入，刪除功能，方便快速修改及制作程；
11.自動焊錫機器人全中文界面，動態顯示運行坐標，直觀可見的參數單位。
   自動焊錫機器人其最大優勢為焊接產品焊點一致，品質穩定性好。同時針對很多產品，一人操作一臺或多臺,其焊接的效率可達到人工焊接的多人效率，具有提高效率的優勢。
   自動焊錫機器人特別適用于汽車電子、數碼、電子、電聲、LCD、線路板等生產行業，連接器（CONNECTOR）、RJ/網絡變壓器、排線、FPCB拉焊、COF拉焊、電腦主板、細小的CABLE、喇叭和馬達等高速高質量焊接.對焊接工人的焊接技術無任何要求,工人只需按一下"啟動"鍵,就可實現高速焊接,能有效確保焊接的一致性、可靠性、穩定性,是最有效解決人員流動快、招工難和人員緊缺的措施.

 自動焊錫機器人的五軸全部采用伺服或步進驅動及先進運動控制算法，能有效地提升運動末端的定位精度和重復精度，主要配套件均采用原裝進口，整機完全采用計算機控制，通過手持盒可直接數字輸入或者示教再現焊點位置坐標。焊錫方式多種多樣，全部工藝參數可由客戶自行設置，以適應各種高難度的焊錫作業和微焊錫工藝。使用本產品能有效地提高焊錫工藝品質，實現了焊錫過程的自動化與智能化。產品規格: XY軸可移動范圍：X=340mm Y=230mm（尺寸可選） ZU軸可移動范圍：Z=90mm（尺寸可選） U=360° 動作速度： XY軸PTP： 5-500mm/ses Z軸PTP：2.5-250mm/ses U軸PTP： 6-600°/ses XYZ軸CP：0.1-500/ses 存儲容量：5000條加工文件方便修改：每條加工文件的運動速度可任意修改定位析度：0.01mm 重復精度：±0.02mm 重量：35kg 耗電量：最高320W 空氣壓力：4~5kg/cm2 適用錫絲范圍：￠0.3mm~￠1.6mm

1. Can be delayed for various parts for high-speed welding, spot welding, welding slash;
2. There is an array copy, parameter copy function;
3. Can be inserted into the middle of cleaning steps in the program, and set the skip, and other steps under the pressure;
4. Unique Model PN # storage and real-name setting function;
5. Password protection to protect the system parameters are not free to change;
6. The communication between machines, program copy function, a substantial saving of time manually doing the program;
7. Program a single correction, the overall correction can be offset on the origin and rapid correction of the workpiece;
8. Single step, and AB automatic positioning function, greatly facilitate the production of the program, recognition, and false welding repair;
9 can store up to 23 Model, can be made for each Model 45-step program! Use free calls.
10. With insert, delete function to facilitate the rapid changes and production processes;
11. Chinese interface, run the coordinates of dynamic display and intuitive parameters visible units.
Especially for a large quantity of hand-soldering process technology, especially SMT soldering process after the section of the temperature-sensitive electronic components welding, and heat sensitive because of the event can not reflow machine components, the DIP package components small PITCH the connector (CONNECTOR), cable, FPCB pull welding, COF pull welding, RJ45, network devices, computer motherboards, small CABLE, speaker and high-speed motor for high quality welding. of welding the welder does not have any requirements, workers Just click on "start" button, you can achieve high-speed welding, welding can ensure consistency, reliability, stability, mobility is the most effective solution to fast, recruitment difficulties and staff shortages measures.

 The solder used in all five-axis robot servo or stepper drive and advanced motion control algorithms, can effectively enhance the sport at the end of the positioning accuracy and repeatability, are used mainly imported component parts, complete with computer-controlled machine, by hand box directly, or teaching and playback digital input coordinates of spot position. Solder a variety of ways, all process parameters set by the customers themselves to adapt to a variety of difficult assignments and micro-soldering process solder. Using this product can improve the quality of soldering process, soldering process to achieve the automation and intelligence. Specifications: XY axis movement range: X = 340mm Y = 230mm (size optional) ZU axis movement range: Z = 90mm (size optional) U = 360 ° Movement Speed: XY-axis PTP: 5-500mm/ses Z-axis PTP :2.5-250mm / ses U-axis PTP: 6-600 ° / ses XYZ axis CP :0.1-500 / ses storage capacity: 5000 to facilitate processing of the file to modify: the velocity of each processing document can be freely modified positioning analysis Degree: 0.01mm Repeat precision: ± 0.02mm Weight: 35kg Power consumption: maximum 320W Air Pressure: 4 ~ 5kg/cm2 for Xisi Fan Wai: ¢ 0.3mm ~ ¢ 1.6mm
