AD0624VB-A71GP（P）

信息類型：跳蚤市場　　所屬類別：軸流風機
地區城市：廣東省－深圳更新時間：2013-7-15 22:43:11
聯系人：李有效期限：2014-7-9 12:12:27
公司名稱：深圳市旺景科技有限公司
電子信箱：sam@smartfan.com.cn 　　聯系電話：86-755-83286865

詳細描述

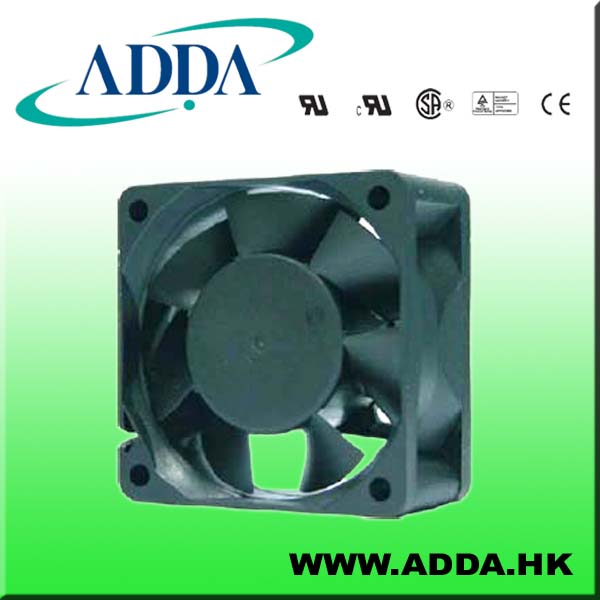

ADDA 60X60X25mm 12v dc cooling fan AD6025GP

1. frame size(mm): 60X60X25
2. bearing type: ball bearing
3. max air flow: 37.31CFM
4. max noise:53.3dBA

ADDA 60X60X25mm 12v dc cooling fan AD6025GP

1	Frame size(mm)	60X60X25
2	Bearing type	ball bearing
3	Rated voltage	12V
4	Rated speed	2500~7500RPM
5	Max air flow	37.31CFM
6	maxiam pressure:	17.48mmAq
7	Maxiam noise	53.3dBA
8	Functions	by IC, by IC with FG,by IC with RD,VS+RD,PWM+FG
9	safety approvals	CE,TUV,UL,cUL
10	Electric Strength	5mA max at 1500VAC for 1 min between lead wire and frame
11	Insulation Resistance	10M ohm between lead wire and frame(DC 500V)
12	Life Expectancy(Ball bearing)	70000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
13	Life Expectancy(Hypro bearing)	>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
14	Operation Temperature	-10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F)
15	Storage Temperature	-40~75 degree C(-40~167 degree F)
16	Protection	Motor protection and polarity protection
17	Lead wire	UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26
18	Plastic Material	Black PBT (UL94V-0) glass fiber

ADDA AD6025GP cooling fan feature:

1. high performance-stronger airflow and static pressure design

2. higher efficiency-low power consumption design

3. high reliability-reliable components adopted

4. new impeller design-one or more stage of structure design

ADDA AD6025GP cooling fan application:

server system, communication equipment, projector, power supply, etc

ADDA AD6025GP cooling fan
1. frame size(mm): 60X60X25
2. bearing type: ball bearing
3. max air flow: 37.31CFM
4. max noise:53.3dBA

ADDA AD6025GP cooling fan

1	Frame size(mm)	60X60X25
2	Bearing type	ball bearing
3	Rated voltage	12V
4	Rated speed	2500~7500RPM
5	Max air flow	37.31CFM
6	maxiam pressure:	17.48mmAq
7	Maxiam noise	53.3dBA
8	Functions	by IC, by IC with FG,by IC with RD,VS+RD,PWM+FG
9	safety approvals	CE,TUV,UL,cUL
10	Electric Strength	5mA max at 1500VAC for 1 min between lead wire and frame
11	Insulation Resistance	10M ohm between lead wire and frame(DC 500V)
12	Life Expectancy(Ball bearing)	70000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
13	Life Expectancy(Hypro bearing)	>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
14	Operation Temperature	-10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F)
15	Storage Temperature	-40~75 degree C(-40~167 degree F)
16	Protection	Motor protection and polarity protection
17	Lead wire	UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26
18	Plastic Material	Black PBT (UL94V-0) glass fiber
