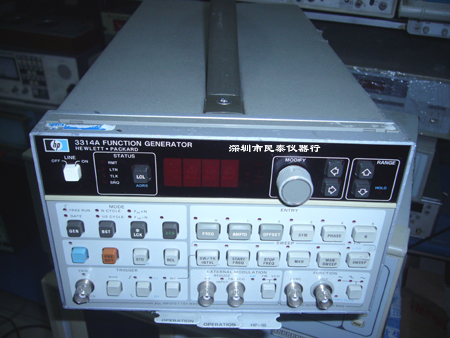

HP 3314A is a multi mode, GPIB (HP-IB) programmable function generator featuring square, triangle and sine function in a range from 0.001 Hz to 19.99 MHz. The 3314A is a very flexible generator, a precision control of trigger functions and easy to use. Remarkable is the comfortable PLL function, with to of these instruments it's possible to create e.g. two sine voltages with an adjustable phase angle. Examples are quadrature signals. Also the frequency can be controlled by another sythesizer.
Free Run Mode, signal is continuous or swept

Gate Mode the HP 3314A output is gated on or off

N Cycle Mode the HP 3314A output signal is acounted burst of "N" cycles

1/2 Cycle Mode the HP 3314A output signal is alternate 1/2 cycles

FIN X N Mode locked to and "N" times the reference frequency

FIN/N Mode locked to and "1/N" times the reference frequency

ARB Mode redefined as an Arbitrary Waveform Generator capable of producing user defined waveforms

Amplitude Accuracy +/-1% of display +0.035Vpp, for sine and square (+0.06Vpp triangle)

Amplitude Flatness (10kHz, 1V to 10Vpp) 0.07dB for 20Hz to 50kHz, 0.33dB for 50kHz to 1MHz, 1.5dB for 1MHz to 19.99MHz.

DC Offset +/-(3% of display +10mVDC +0.5% of AC Amplitude Range) for Frequency <100kHz Auto Range:ON

Phase Offset - Phase lock Modes Accuracy +/-2° (50Hz to 25kHz)

Sine Harmonic Distortion for 20Hz to 50kHz -55dB, for 50kHz to 1999kHz -40dB, -25dB for 1999kHz to 19.99MHz and Offset at 0V, and Invert to OFF.

Square Wave Risetime, Falltinme <9ns for 10% to 90% at a 10Vpp output

Square Wave Aberrations <5% at 10Vpp output

Triangle Linearity +/-0.2% of the pp voltage
