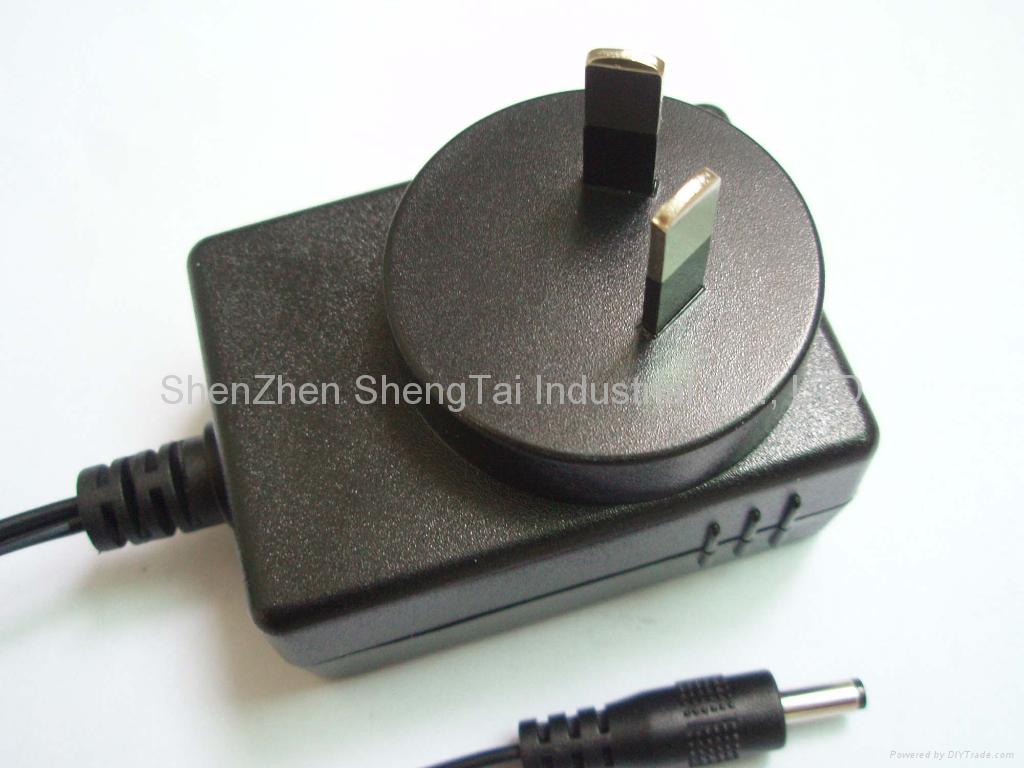

12W-15W 澳洲SAA標準開關(guān)電源適配器
GFP121A-030200-1 (3V,2.0A)
GFP121A-040200-1 (4V,2.0A)
GFP121A-050200-1 (5V,2.0A)
GFP121A-060200-1 (6V,2.0A)
GFP121A-075160-1 (7.5V,1.6A)
GFP121A-090130-1 (9V,1.3A)
GFP121A-100120-1 (10V,1.2A)
GFP121A-110110-1 (11V,1.1A)
GFP121A-120100-1 (12V,1.0A)
GFP121A-130090-1 (13V,0.9A)
GFP121A-140085-1 (14V,0.85A)
GFP121A-150080-1 (15V,0.80A)
GFP121A-160075-1 (16V,0.75A)
GFP121A-180060-1 (18V,0.6A)
GFP121A-190060-1 (19V,0.6A)
GFP121A-200055-1 (20V,0.55A)
GFP121A-210050-1 (21V,0.50A)
GFP121A-220050-1 (22V,0.50A)
GFP121A-230050-1 (23V,0.50A)
GFP121A-240050-1 (24V,0.50A)

GFP151A-030250-1 (3V,2.5A)
GFP151A-040250-1 (4V,2.5A)
GFP151A-050250-1 (5V,2.5A)
GFP151A-060230-1 (6V,2.3A)
GFP151A-075200-1 (7.5V,2.0A)
GFP151A-090160-1 (9V,1.6A)
GFP151A-100150-1 (10V,1.5A)
GFP151A-110130-1 (11V,1.3A)
GFP151A-120125-1 (12V,1.25A)
GFP151A-130115-1 (13V,1.15A)
GFP151A-140100-1 (14V,1.0A)
GFP151A-150100-1 (15V,1.0A)
GFP151A-160055-1 (16V,0.55A)
GFP151A-180075-1 (18V,0.75A)
GFP151A-190070-1 (19V,0.7A)
GFP151A-200065-1 (20V,0.65A)
GFP151A-210060-1 (21V,0.60A)
GFP151A-220060-1 (22V,0.60A)
GFP151A-230060-1 (23V,0.60A)
GFP151A-240060-1 (24V,0.60A)


機械尺寸:L*W*H=60.4*44*35.8
輸入電壓[Input Voltage]: AC 100-240V,50/60Hz
輸入電壓范圍[Range Voltage]: AC 90--264V,47/63Hz
輸出功率[Output Power]: 12W -15W
輸出電壓[Output Voltage]: 3V-24V
過壓保護[Over Voltage Protection]: 120%min
過流保護[Over Current Protection]: 120%min
短路保護[Short Protection]: Auto Recovery
輸出電壓精度[Load Regulation]: ±5%
工作環(huán)境溫度[Operating Temperature]: 0~40℃
存儲溫度[Storage Temperature]: -20~85℃
工作濕度[Operating Relative Humidity]: 5~95%RH
絕緣耐壓[Withstanding Voltage]: AC 3000V(Min),5mA(Max)
絕緣阻抗[Insulation Resistance]: DC 500V 100MΩ(Min)
安規(guī)認證[Safety]: SAA C-Tick  ErP/Energy Efficiency level:V （能源效率五等級）
主要市場[Market]:澳洲
