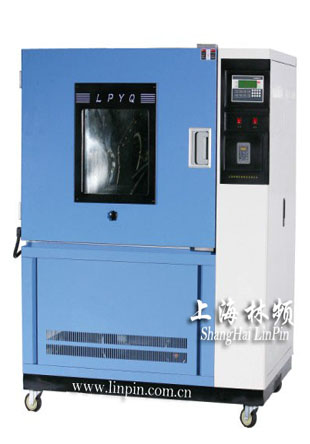

Box rain test chamber LINPIN
地區城市：上海市－上海 更新時間：2011-9-26 14:06:33
聯 系 人：黃蘇芳 有效期限：2012-9-26 9:50:19
公司名稱：上海林頻儀器設備有限公司
電子信箱：linpin@linpin.com.cn 聯系電話：021-34098999
Purpose
This product is applicable for the outer protection of exterior lighting, signal devices and car lamps(linpin).
Chamber Structure
The guiding upright column is made with high-quality channel steel welding and exterior splicing of stainless steel drawing blocks.
A sample table with rotate speed adjustable is available.
Control System
Adjusts pressure with flowmeter(linpin).
Adopts imported frequency converter to control rotate speed in order to ensure the test can be conducted as per the applied standards.
A water filter is equipped.
Standards Applied
GB10485-89 GB4208-93 GB/T4942
Technical Requirements
Model (cm) LX-500
LX-010
Workroom Dimensions
80*80*80 102*120*100
Exterior Dimensions
88*118*154
120*158*176
Power 2.0(KW) 2.5(KW)
Water Spray Ring Radius
375mm 500mm
Water Pipe Diameter φ16mm
Spraying Hole Diameter
φ0.4mm
Aperture Spacing
50mm
Swing Range
±45°,±60°,±90°,±180°
Test Bench Rotation Speed
1r/min, or stepless speed regulating (optional)
