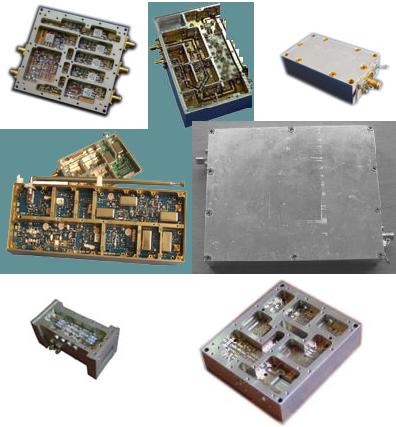

頻率合成器

TYPICAL PERFORMANCE
Frequency Range: 1~2GHz
Step: 10MHz (up to 1KHz)
Output Power (two ways): >14dBm
Single Band Phase Noise: -110dBc/Hz@1KHz
Spurious Rejection: -60Bc
Harmonic Rejection: -50dBc
Frequency Stability: 5×10-10(1 second)
Jumping Time: <50nS
Power: ±5V, ±12V
Outline Drawing: TBD

鎖相環

TYPICAL PERFORMANCE
Frequency Range: 0.1~10GHz
Band: Exceed Double Jump Time: >30uS
Control: Serial / Parallel Frequency Stability: ±1×10-7/Day
Spurious Rejection: >60dBc
Harmonic Rejection: >50dBc
Single Band Phase Noise: -85dBc/Hz@1KHz (@8GHz)
Output Power: >13dBm
Power ripple: ±1dB
VSWR: <1.5
Step: 1MHz (Up to 1KHz)
Operation Temperature: -40℃~+85℃
Outline Drawing: TBD
